Telescopic Belt Conveyor – Customizable & space-saving solutions for efficient loading/unloading. MOQ:1, wholesale discounts available. Global agents wanted!
Item No :
SQ-TBCOrder(MOQ) :
1Payment :
50% deposit ，50% balance against BOLProduct Origin :
China，JiaColor :
CustomizedShipping Port :
ShanghaiLead Time :
30 daysWeight :

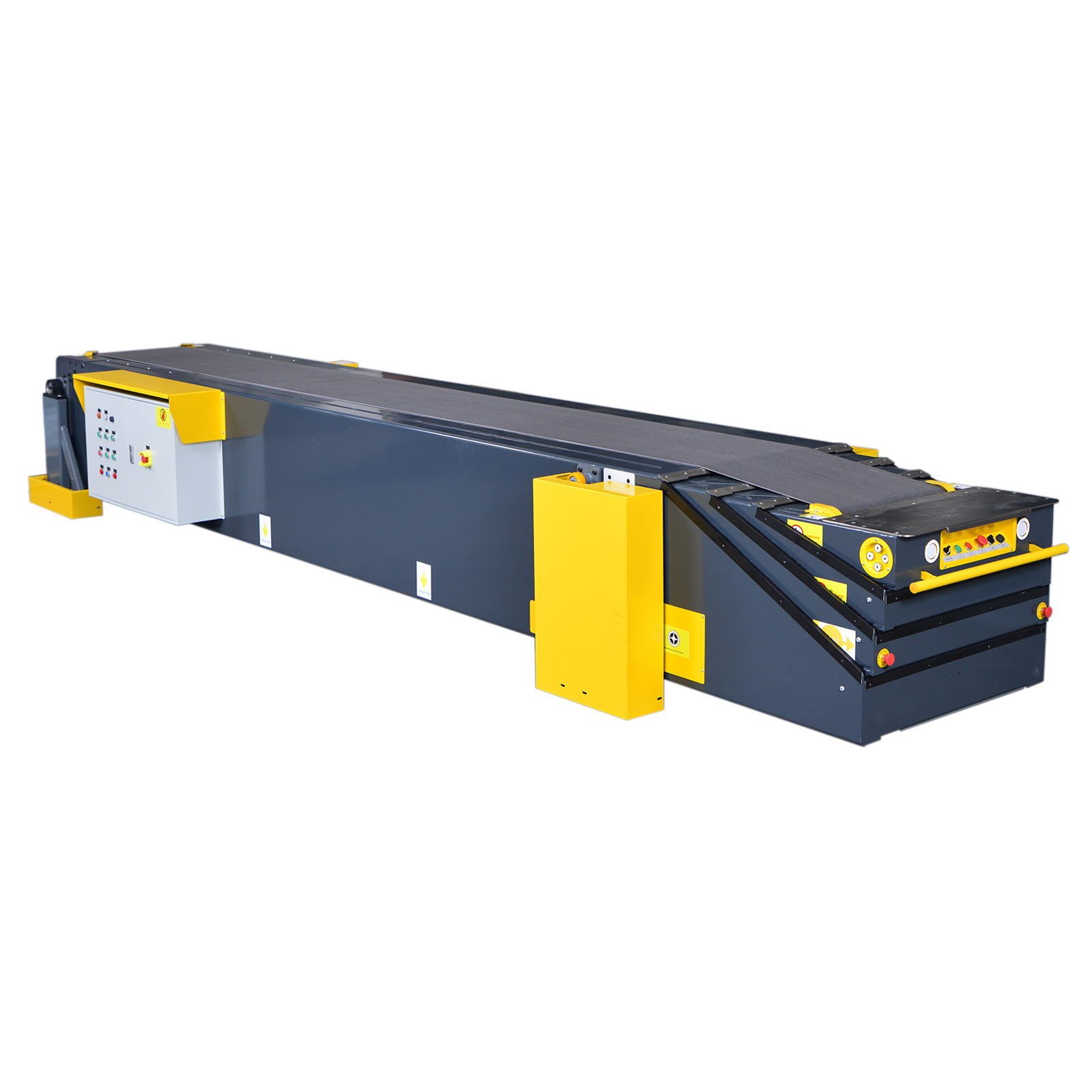

3 tonSQ Telescopic Belt Conveyor – Maximize Efficiency, Minimize Cost
Shuangqi (SQ) specializes in highly customizable telescopic belt conveyors with industry-leading extension length (longest reach in fixed-frame models) and the widest range of standard models.
Why Choose SQ Telescopic Conveyor?
• Cost Advantage: Competitive pricing without compromising durability—direct factory savings.
• Unmatched Extension: Our conveyors extend further than competitors’ same-size models, optimizing workspace.
• Widest Product Range: From compact 5m to heavy-duty 30m+ extensions, covering all logistics needs.
• Professional OEM/ODM: Tailor length, speed, load capacity (up to 80kg/m²), and power options (electric/hydraulic).
• Global Support: MOQ starts at 1 unit with wholesale discounts. Agents & distributors welcome worldwide!
Applications
| Type | Booms | Fixed Length(mm) | Extended Length(mm) | Total(mm) | Belt Width(mm) |
| SQ-2-4/3 | 2 | 4000 | 3000 | 7000 | 600/800/1000 |
| SQ-3-5/7 | 3 | 5000 | 7000 | 12000 | 600/800/1000 |
| SQ-3-6/8.6 | 3 | 6000 | 8600 | 14600 | 600/800/1000 |
| SQ-4-5/10 | 4 | 5000 | 10000 | 15000 | 600/800/1000 |
| SQ-4-6/12.45 | 4 | 6000 | 12450 | 18450 | 600/800/1000 |
| SQ-4-7/14.6 | 4 | 7000 | 14600 | 21600 | 600/800/1000 |
| SQ-4-7.5/16 | 4 | 7500 | 16000 | 23500 | 600/800/1000 |
| SQ-4-8/17 | 4 | 8000 | 17000 | 25000 | 600/800/1000 |
| SQ-5-6/16 | 5 | 6000 | 16000 | 22000 | 600/800/1000 |
| SQ-5-7/19 | 5 | 7000 | 19000 | 26000 | 600/800/1000 |
| SQ-5-7.5/21 | 5 | 7500 | 21000 | 28500 | 600/800/1000 |
| SQ-6-6/20.5 | 6 | 6000 | 20500 | 26500 | 600/800/1000 |
| SQ-6-7.5/24 | 6 | 7500 | 24000 | 31500 | 600/800/1000 |
